1064nm 150w Industrial Gold Laser Welding Machine For Jewellery
Product introduction
By adopting the overall design of laser head, laser power supply, built-in cooling system, numerical control system and worktable, this equipment provides you with compact structure and intelligent appearance, convenient operation and stable performance, and only takes up a small space.
Product Features
1. It allows you to select the output power, frequency, pulse width and other parameters of the laser through the touch panel.
2. It also has an automatic protection function to prevent misoperation and temperature fluctuations.
3. The xenon lamp has a long working life and simple replacement operation.
4. High-resolution CCD and microscope can be optionally equipped.
Specification:
| model | PE-W150 | PE-W200 |
| Maximum laser power | 150W | 200W |
| Laser wavelength | 1064nm |
| Laser power supply | 6KW | 9KW |
| Laser welding minimum capacity pool | 0.1mm |
| Laser pulse frequency | ≤50Hz |
| Laser pulse width | ≤20ms |
| Spot adjustment range | 0.1~3.0mm |
| The spot size | 0.2~3.0mm |
| Protective gas | 1 way |
| electricity demand | 220V single phase/50Hz/20A |
| Dimensions of the system | Host system | 1000×480×1080mm |
| cooling system | 720×510×970mm |
| net weight | 115KG |
Industry Application:

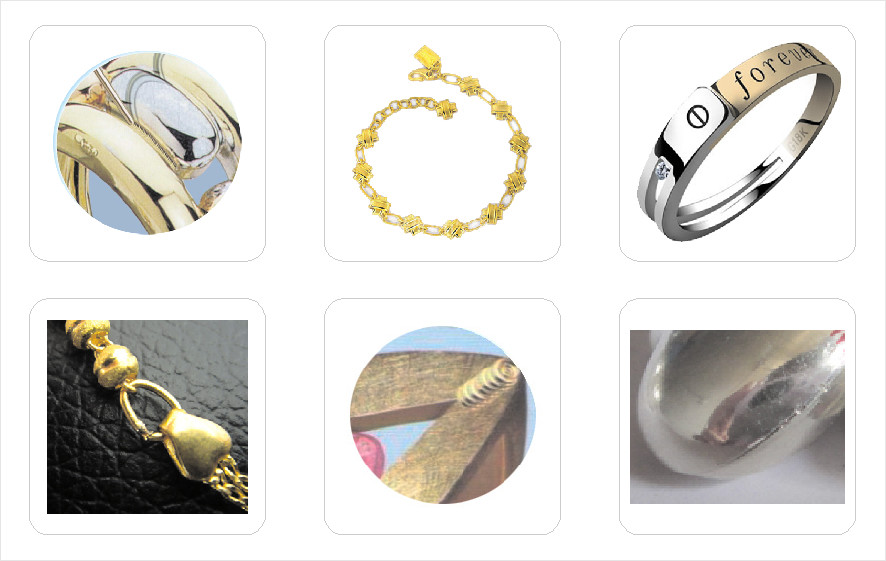

Repair jewelry; repair plastic molds, die casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, digital product molds/mobile phones/toys/cars/motorcycles/cracks or pores can be filled by using proper solder wire It is also used for splicing and welding of thin metal plates, butt welding of pipes and tubes, as well as the manufacture of sensors, liquid level switches and fine automotive parts.
FAQ
Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual attached to the machine. If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
