Multi Position 1500w Handheld Laser Welding Machine Built In Water Chiller
Advantages of handheld welder
The small and smallest handheld laser welding machine on the market, weight 75KG, only a quarter of that of its counterparts, which greatly reduces transportation costs and is easy to carry.
1. Handheld laser welding machine, fixed optical path, flexible and convenient, long-distance laser welding
2. The hand-held welding head is light and flexible, which can meet various angles and multi-position welding
3. Infrared positioning, the welding position is more accurate, and the welding seam is more beautiful
4. Fast welding speed, simple operation, reducing time and cost
5. The laser welding depth is large, the weldability is strong, and it is suitable for all kinds of complicated welding.
Newly designed handheld fiber laser welding machine
Laser welding uses high-energy laser pulses to locally heat the material in a small area.
The energy of laser radiation diffuses into the material through thermal conduction, melting the material to form a specific molten pool. It is a new type of welding method, mainly used for welding thin-walled materials and precision parts. It can realize spot welding, butt welding, overlap welding, sealing welding, etc.
The welding speed is fast, no treatment is required after welding, and the weld quality is high. , Can be precisely controlled, small focus, high positioning accuracy, easy to automate
Machine Specifications
| Model | RL-F1000/1500W |
| Laser power | 1000/1500/2000W |
| Center wavelength | 1070+-5nm |
| Laser frequency | 50Hz-5KHz |
| Work patterns | Continuous |
| Electricity demand | AC220V |
| Output fiber length | 5/10/15m (Optional) |
| Cooling method | Water Cooling |
| Dimensions | 1150*760*1370mm |
| Weight | 75kg |
| Cooling water temperature | 5-45℃ |
| Average consumed power | 2500/2800/3500/4000W |
| Laser Energy Stability | <2% |
| Air humidity | 10-90% |
Automatic wire feeder
The machine is equipped with an automatic wire feeding device, which can easily adjust the parameters and provide a variety of options
It can effectively make up the weld seam produced in the welding process, and make the welding joint tighter.
✦ Applicable materials:

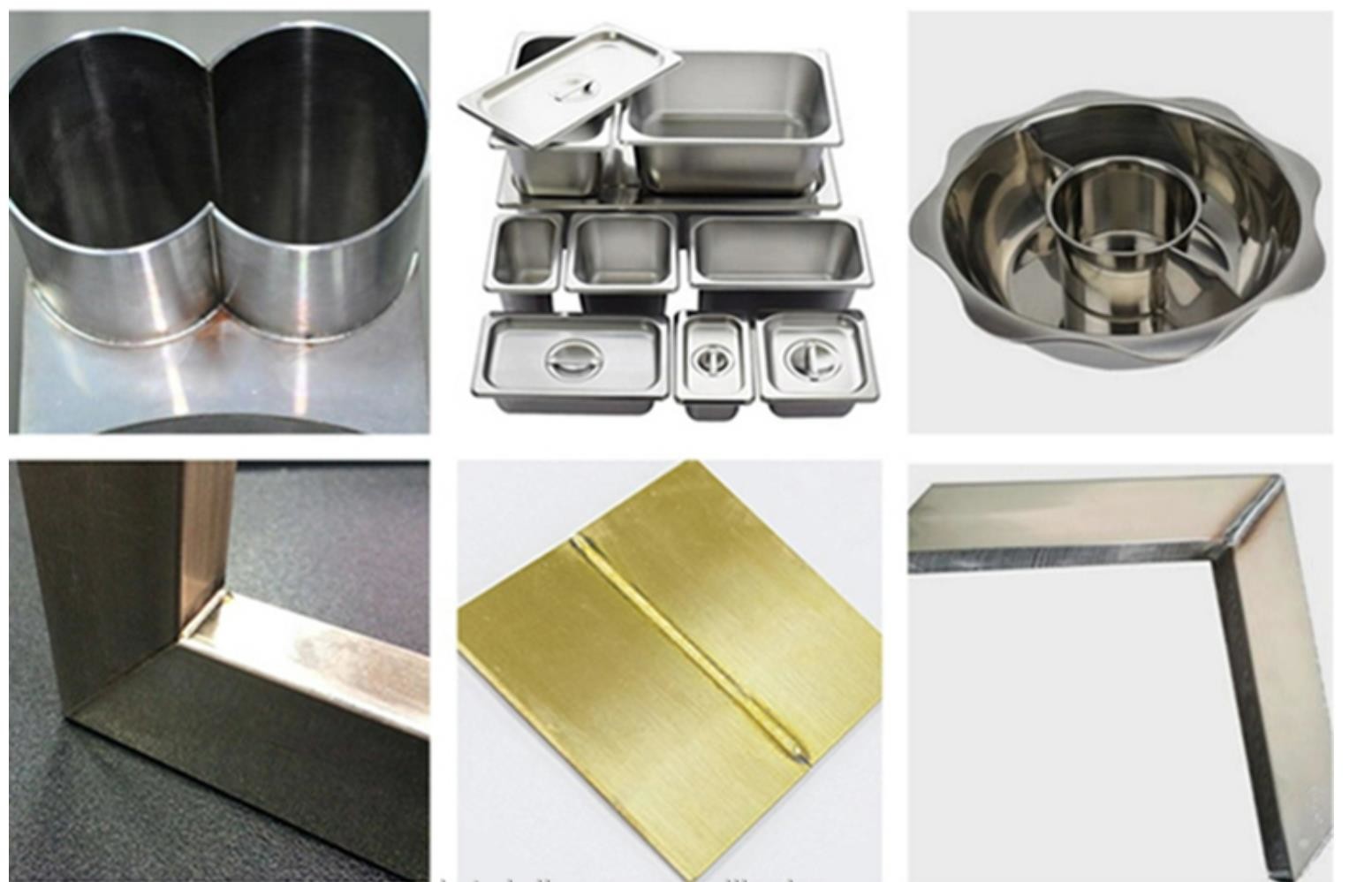

Laser welding machines are used in stainless steel, carbon steel, aluminum, copper materials, etc.
✦ Beautiful welding seam, fast speed, no consumables, no welding marks, no discoloration, no need for post-polishing. A variety of angle nozzles can be configured to meet the welding needs of different products.
