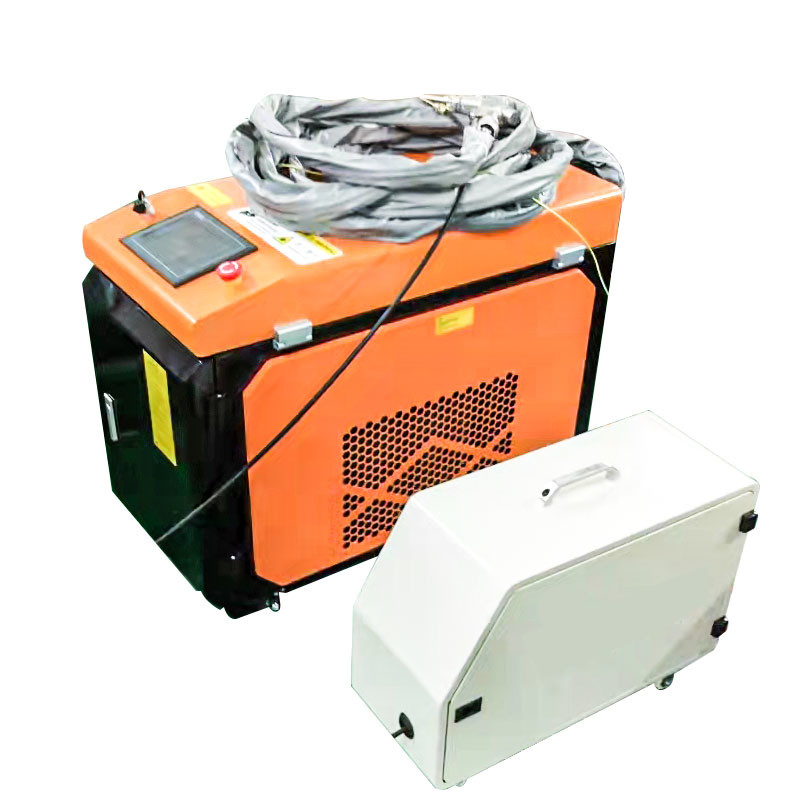

Portable handheld laser welding machine Introduction
The Riselaser handheld fiber laser welding machine adopts the latest generation of fiber lasers to achieve multi-fiber simultaneous output. Compared with the traditional hard light output system, the degree of freedom of processing is improved, and multiple beams and multiple stations can be processed simultaneously. Machining provides the conditions for more precise welding. It has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables. It can weld thin stainless steel plates, iron plates, galvanized plates and other metal materials, and can perfectly replace traditional argon gas. Arc welding, electric welding and other processes.
Handheld laser welding machine can be widely used in complex and irregular welding processes such as kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, and stainless steel households.
Portable handheld laser welding machine parameters
| Laser System | RL-F1000 | RL-F1500 |
| Laser Type | 1080nm Fiber Laser |
| Nominal Laser Power | 1000W | 1500W |
| Cooling System | Water Cooling |
| Way of working | Continuous / Modulation |
| Speed range of welder | 0~120 mm/s |
| Focal Spot Diameter | 0.5mm |
| Ambient temperature range | 15~35 ℃ |
| Environmental humidity range | <70% without condensation |
| Welding thickness | 0.5-3mm |
| Welding gap requirements | ≤1.2mm |
| Operating Voltage | AV220V |
| Packing Dimensions | 100*74*76cm |
| Packing Weight | 90kg |
| Fiber length | Standard 10m, the longest customized length15m |
Portable handheld laser welding machine machine features:
The operation is simple and convenient, and the welding seam is not deformed;
The laser output is stable to ensure the consistency of the weld;
High power density after laser focusing;
Deep, small deformation.
The welding seam is flat and beautiful, the welding workpiece is not deformed, the welding is firm, and the subsequent grinding process is not required, saving time and cost.
360 degree micro welding without dead angle
Machine video
